Torca TorcTite Exhaust Clamps (Slip Fit Connections)

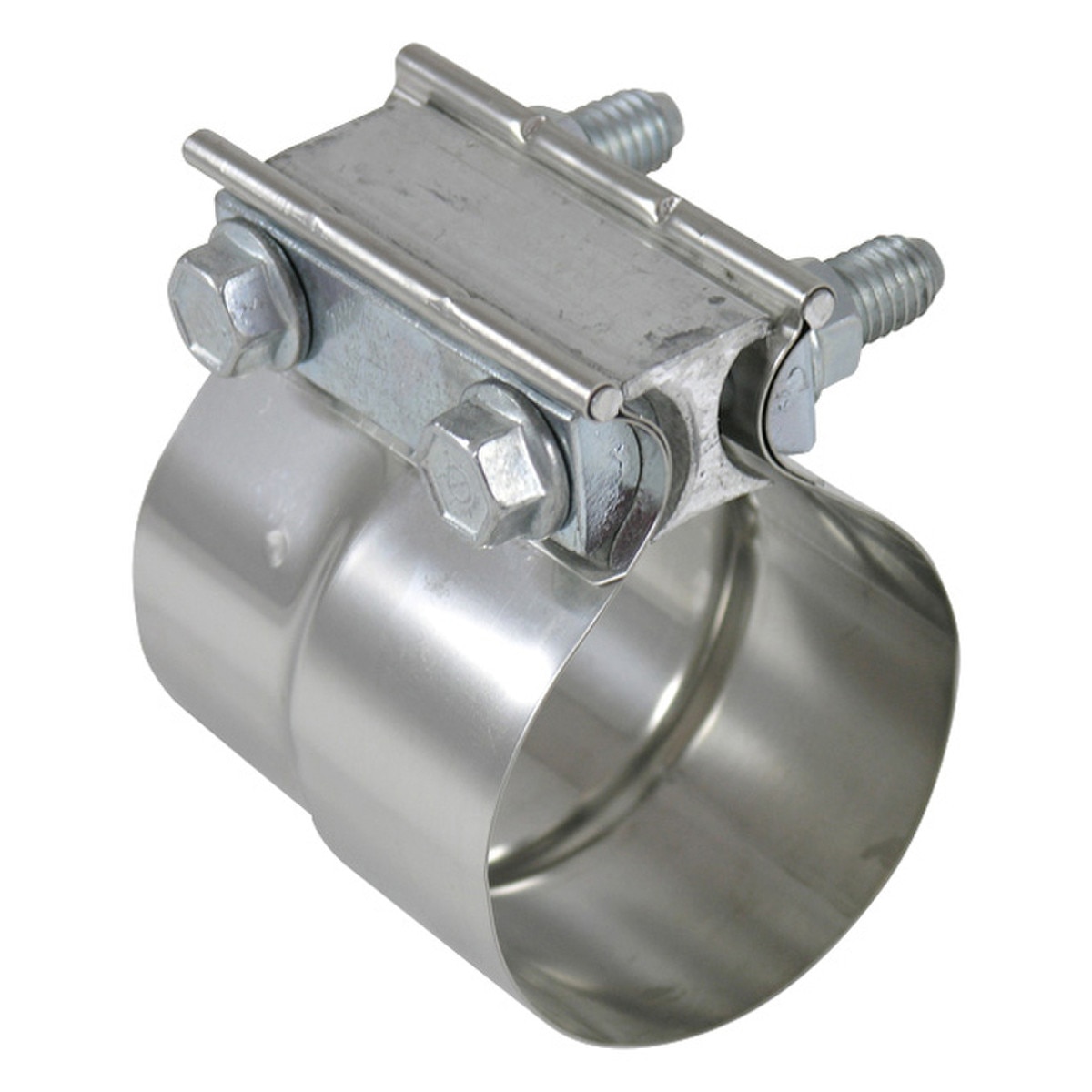

Torca TorcTite Exhaust Clamps are 100% 304 stainless steel and preformed to fit over slip joints, making them a simple, effective way to connect exhaust system components such as pipes, mufflers and catalytic converters. TorcTite clamps replace U-bolts and clamps. The patented design makes for fast, easy and accurate installation.

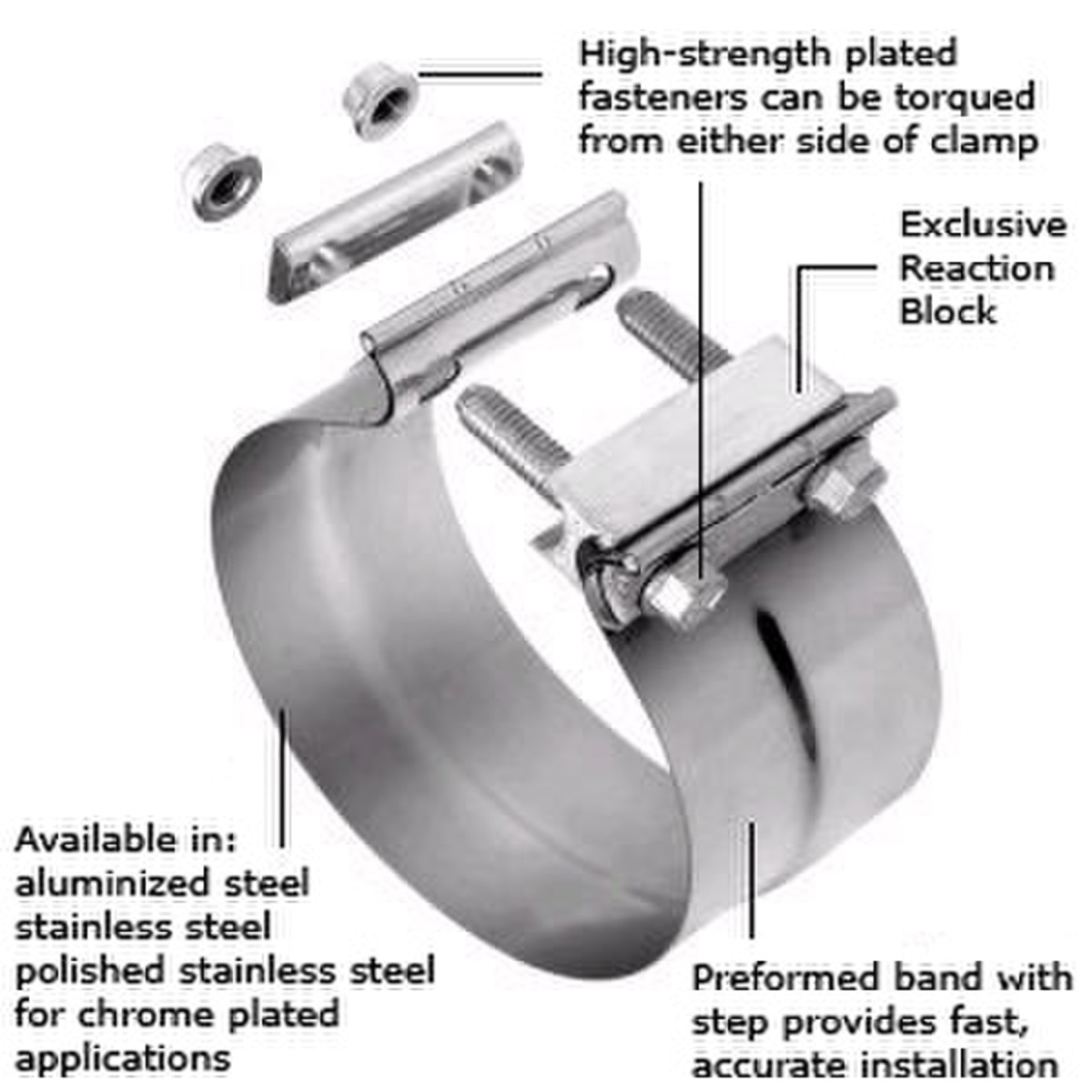

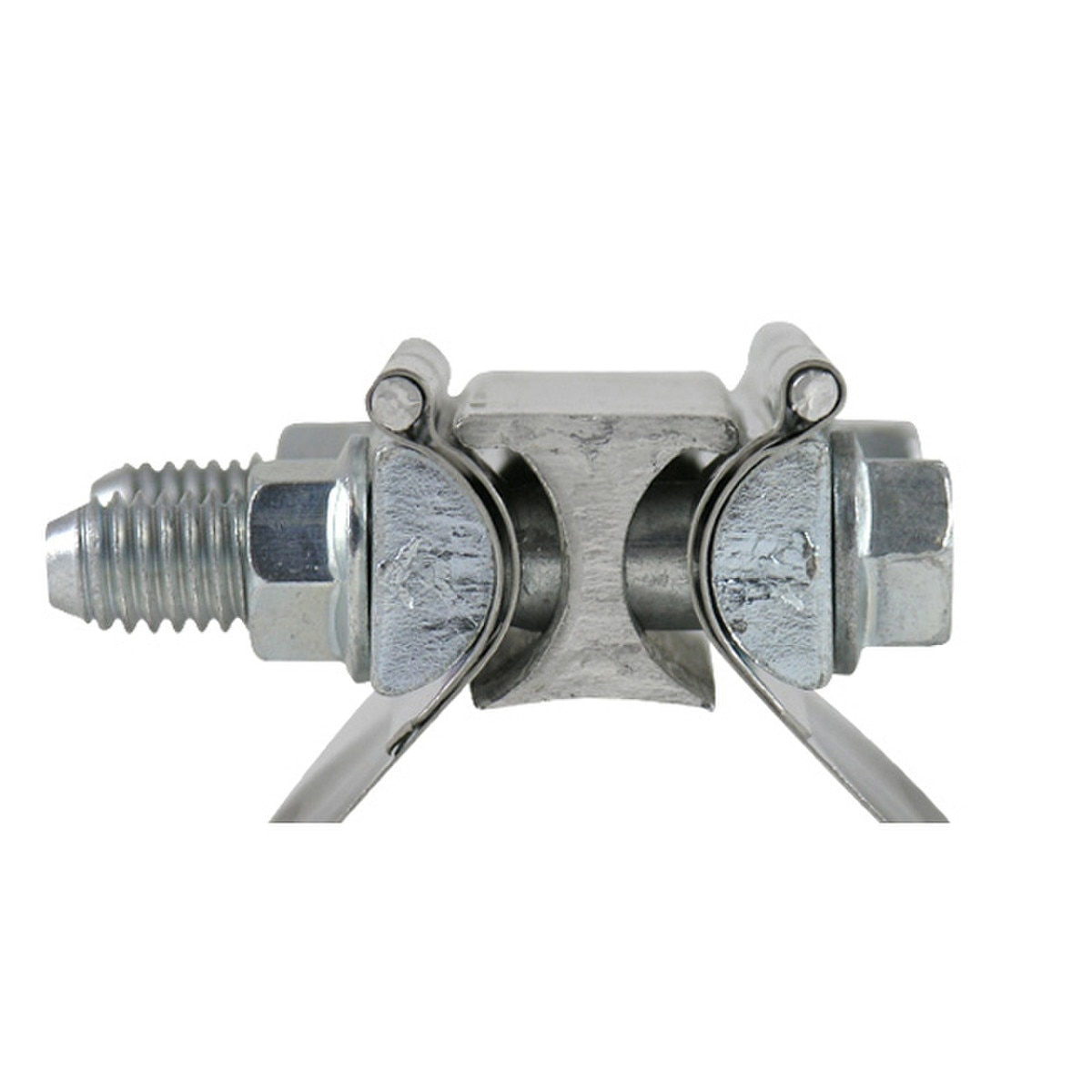

TorcTite clamps are available in standard industry sizes ranging from 2" (50.8mm) through 6" (152.4mm). Don't be fooled by inferior knock offs! TorcTite's exclusively developed patented fastening system includes force bars, bolts, nuts, and patented reaction block, which creates the power to stretch the clamp band tightly around slip joints. The reaction block provides a full 360 degree equal distribution of stretching force, prohibiting pipe distortion while completing a seal around the joined exhaust components.
TorcTite Clamps are designed to be used on ID/OD style connections. For example, if you have a 2.50" exhaust, the small side of the clamp is designed to fit over your 2.50" OD exhaust, while the larger side of the clamp is designed to fit over tubing that has been flared to a 2.50" ID, or over an exhaust component such as a muffler that has a 2.5" ID inlet or outlet.
VMS PN | Size | Length | Material |
---|---|---|---|
TTS-200 | 2.00" (50.8mm) | 3.00" (76.2mm) | 304 Stainless |
TTS-225 | 2.25" (57.2mm) | 3.00" (76.2mm) | 304 Stainless |
TTS-250 | 2.50" (63.5mm) | 3.00" (76.2mm) | 304 Stainless |
TTS-275 | 2.75" (69.9mm) | 3.00" (76.2mm) | 304 Stainless |
TTS-300 | 3.00" (76.2mm) | 3.00" (76.2mm) | 304 Stainless |
TTS-350 | 3.50" (88.9mm) | 3.00" (76.2mm) | 304 Stainless |
TTS-400 | 4.00" (101.6mm) | 3.00" (76.2mm) | 304 Stainless |
TTS-500 | 5.00" (127mm) | 3.00" (76.2mm) | 304 Stainless |
TTS-600 | 6.00" (152.4mm) | 3.00" (76.2mm) | 304 Stainless |
