Torca EasySeal Exhaust Clamps (Slip Fit Connections)
Torca EasySeal exhaust clamps are made from 100% 304 stainless steel for a simple, effective way to connect exhaust system components such as pipes, mufflers and catalytic converters and are ideal for slip joint applications.Torca EasySeal clamps replace U-bolts and clamps. Don't be fooled by inferior knock offs! The patented design makes for fast, easy and accurate installation - there's no need to separate pipes or exhaust members before clamping.

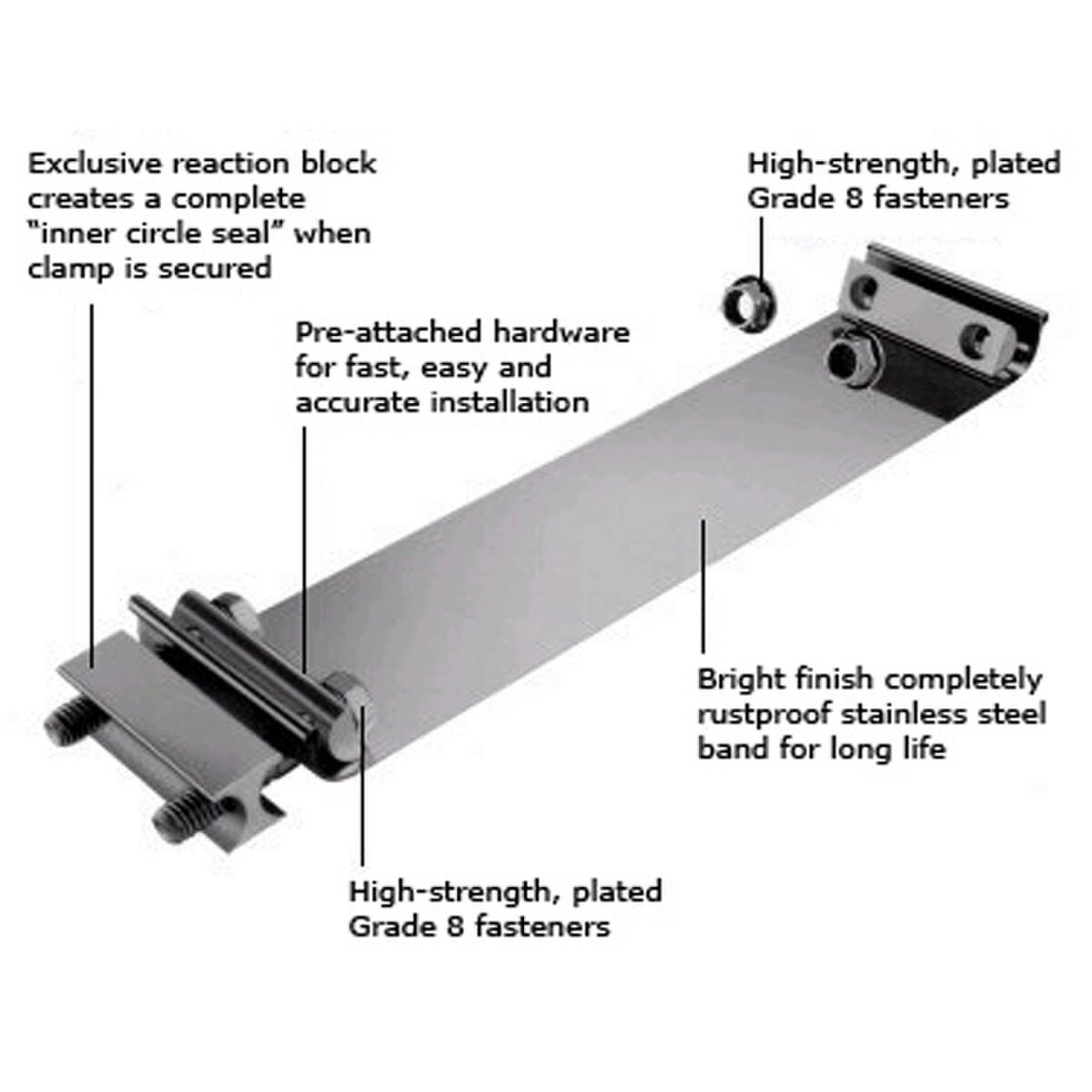

EasySeal clamps are available in standard industry sizes ranging from 2" (50.8mm) through 6" (152.4mm). EasySeal's exclusively developed fastening system includes force bars, bolts, nuts, and patented reaction block, which creates the power to stretch the clamp band tightly around exhaust members. The reaction block provides a full 360 degree equal distribution of stretching force, prohibiting pipe distortion while completing a seal around the joined exhaust components.
EasySeal Clamps are designed to be used on ID/OD style connections. For example, if you have a 2.50" exhaust, the clamp is designed to span your 2.50" OD exhaust, and the tubing that has been flared to a 2.50" ID, or over an exhaust component such as a muffler that has a 2.5" ID inlet or outlet.
For more than 30 years, Torca branded products have been designed and manufactured to deliver superior exhaust connections. Torca invented the original reaction block technology that set the industry standard for creating full 360 degree sealing performance for exhaust clamps. By focusing on evolving innovation and improvement into the product, Torca products provide the best product performance, with the least material, for maximum efficiency to the overall system. Torca Products are proudly developed and manufactured in the U.S.A.
EasySeal clamps are available in standard industry sizes ranging from 2" (50.8mm) through 6" (152.4mm). EasySeal's exclusively developed fastening system includes force bars, bolts, nuts, and patented reaction block, which creates the power to stretch the clamp band tightly around exhaust members. The reaction block provides a full 360 degree equal distribution of stretching force, prohibiting pipe distortion while completing a seal around the joined exhaust components.
EasySeal Clamps are designed to be used on ID/OD style connections. For example, if you have a 2.50" exhaust, the clamp is designed to span your 2.50" OD exhaust, and the tubing that has been flared to a 2.50" ID, or over an exhaust component such as a muffler that has a 2.5" ID inlet or outlet.
For more than 30 years, Torca branded products have been designed and manufactured to deliver superior exhaust connections. Torca invented the original reaction block technology that set the industry standard for creating full 360 degree sealing performance for exhaust clamps. By focusing on evolving innovation and improvement into the product, Torca products provide the best product performance, with the least material, for maximum efficiency to the overall system. Torca Products are proudly developed and manufactured in the U.S.A.
Torca EasySeal® Clamp Features:
- 2" thru 6" sizes
- Torque to 48-60 ft-lbs
- 360° Reaction Block
- 304 Stainless Steel Band
- High-Strength Grade-8 Fasteners
- Installs Easily and Consistently
- Butt & Lap-Joint Types
- Plated Hardware
- Does not crimp pipes
- Easy to disassemble and service joints
- Made in the USA
 | ||||
| VMS PN | Size | Length | Material | |
|---|---|---|---|---|
| TEC-200 | 2.00" (50.8mm) | 3.00" (76.2mm) | 304 Stainless | |
| TEC-225 | 2.25" (57.2mm) | 3.00" (76.2mm) | 304 Stainless | |
| TEC-250 | 2.50" (63.5mm) | 3.00" (76.2mm) | 304 Stainless | |
| TEC-275 | 2.75" (69.9mm) | 3.00" (76.2mm) | 304 Stainless | |
| TEC-300 | 3.00" (76.2mm) | 3.00" (76.2mm) | 304 Stainless | |
| TEC-350 | 3.50" (88.9mm) | 3.00" (76.2mm) | 304 Stainless | |
| TEC-400 | 4.00" (101.6mm) | 3.00" (76.2mm) | 304 Stainless | |
| TEC-500 | 5.00" (127mm) | 3.00" (76.2mm) | 304 Stainless | |
