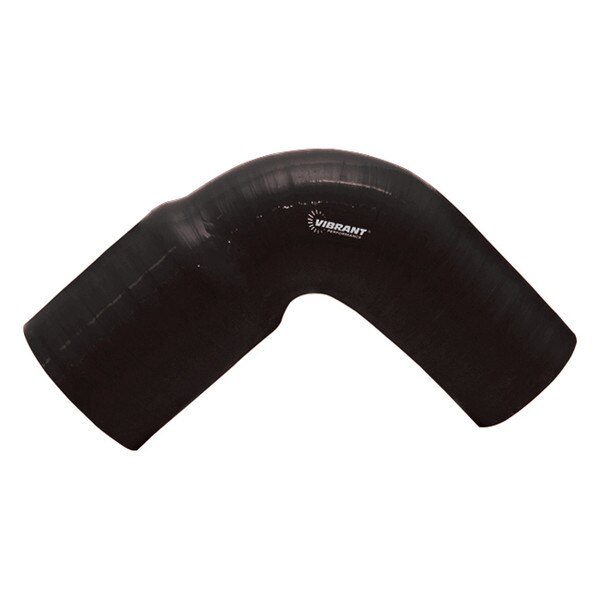

Vibrant 90 Degree Silicone Reducing Bends, 4 Ply
ATTENTION: All red versions of this product are discontinued.

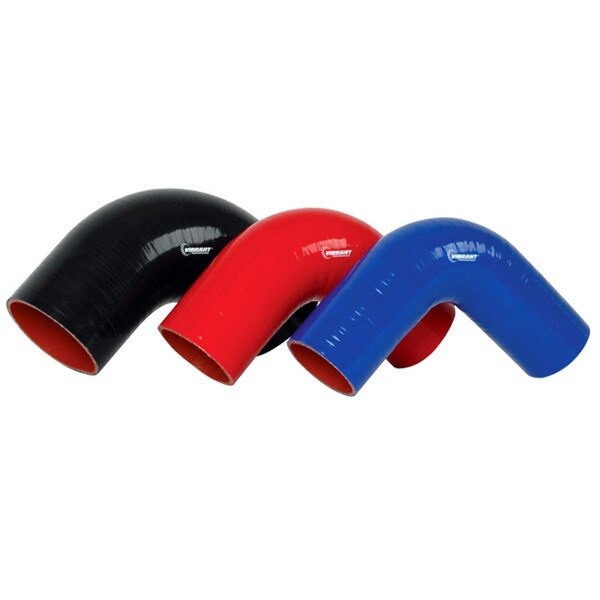

Vibrant Performance makes it easy to complete all of your custom air induction projects with their complete lineup of top quality reinforced silicone connectors. These Vibrant silicone 90 degree reducing bends feature hand wrapped 4-ply polyester reinforced construction, which allows these couplers to withstand high temperatures and high boost conditions without swelling or bursting like inferior rubber connectors. Vibrant's 4 ply silicone 90 degree transition elbows feature 7" or longer legs and are rated for temperatures from -65° F up to 350° F.
 | |||||||
| VMS Part # | MFG Part # | Size 1 (ID1) | Size 2 (ID2) | Radius (CLR) | Legs (A) | Wall Thick. (± 0.02") | Burst Pressure |
|---|---|---|---|---|---|---|---|
| VIBR904P-200250-4.5-BLK | 2780 | 2.00" (50.8mm) | 2.50" (63.5mm) | 2.50" (63.5mm) | 4.50" (114.3mm) | 0.18" (4.57mm) | 80 psi |
| VIBR904P-200250-4.5-BLU | 2780B | 2.00" (50.8mm) | 2.50" (63.5mm) | 2.50" (63.5mm) | 4.50" (114.3mm) | 0.18" (4.57mm) | 80 psi |
| VIBR904P-200250-4.5-RED | 2780R | 2.00" (50.8mm) | 2.50" (63.5mm) | 2.50" (63.5mm) | 4.50" (114.3mm) | 0.18" (4.57mm) | 80 psi |
| VIBR904P-250275-3.5-BLK | 2781 | 2.50" (63.5mm) | 2.75" (69.9mm) | 2.75" (69.9mm) | 3.50" (88.9mm) | 0.18" (4.57mm) | 70 psi |
| VIBR904P-250275-3.5-BLU | 2781B | 2.50" (63.5mm) | 2.75" (69.9mm) | 2.75" (69.9mm) | 3.50" (88.9mm) | 0.18" (4.57mm) | 70 psi |
| VIBR904P-250275-3.5-RED | 2781R | 2.50" (63.5mm) | 2.75" (69.9mm) | 2.75" (69.9mm) | 3.50" (88.9mm) | 0.18" (4.57mm) | 70 psi |
| VIBR904P-250300-3.5-BLK | 2782 | 2.50" (63.5mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 3.50" (88.9mm) | 0.18" (4.57mm) | 60 psi |
| VIBR904P-250300-3.5-BLU | 2782B | 2.50" (63.5mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 3.50" (88.9mm) | 0.18" (4.57mm) | 60 psi |
| VIBR904P-250300-3.5-RED | 2782R | 2.50" (63.5mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 3.50" (88.9mm) | 0.18" (4.57mm) | 60 psi |
| VIBR904P-275300-3.5-BLK | 2783 | 2.75" (69.9mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 3.50" (88.9mm) | 0.18" (4.57mm) | 60 psi |
| VIBR904P-275300-3.5-BLU | 2783B | 2.75" (69.9mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 3.50" (88.9mm) | 0.18" (4.57mm) | 60 psi |
| VIBR904P-275300-3.5-RED | 2783R | 2.75" (69.9mm) | 3.00" (76.2mm) | 3.00" (76.2mm) | 3.50" (88.9mm) | 0.18" (4.57mm) | 60 psi |
| VIBR904P-300400-4.5-BLK | 2785 | 3.00" (76.2mm) | 4.00" (101.6mm) | 4.00" (101.6mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 40 psi |
| VIBR904P-300400-4.5-BLU | 2785B | 3.00" (76.2mm) | 4.00" (101.6mm) | 4.00" (101.6mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 40 psi |
| VIBR904P-300400-4.5-RED | 2785R | 3.00" (76.2mm) | 4.00" (101.6mm) | 4.00" (101.6mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 40 psi |
