Vibrant 90 Degree Silicone Bends, 4 Ply
ATTENTION: All red versions of this product are discontinued.

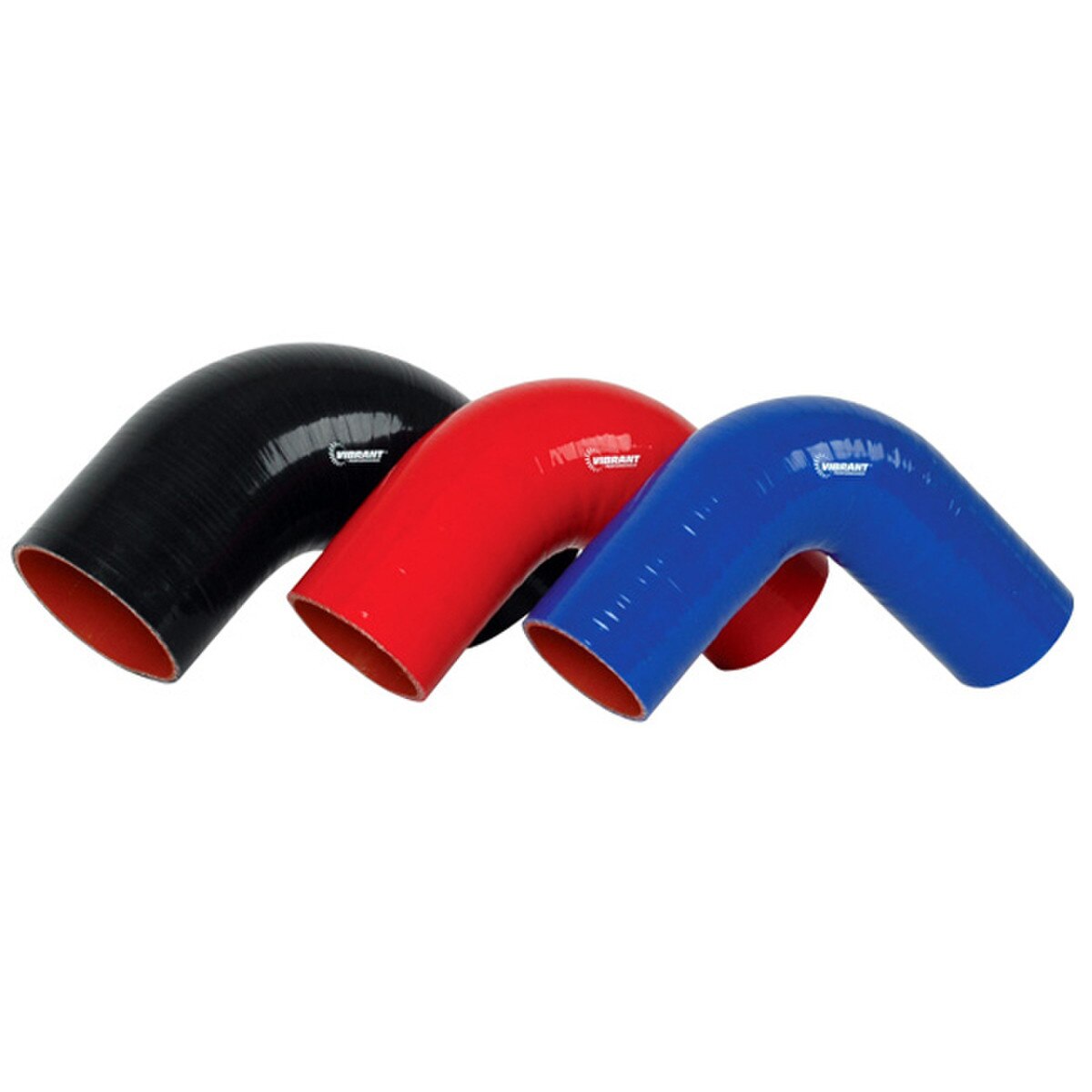

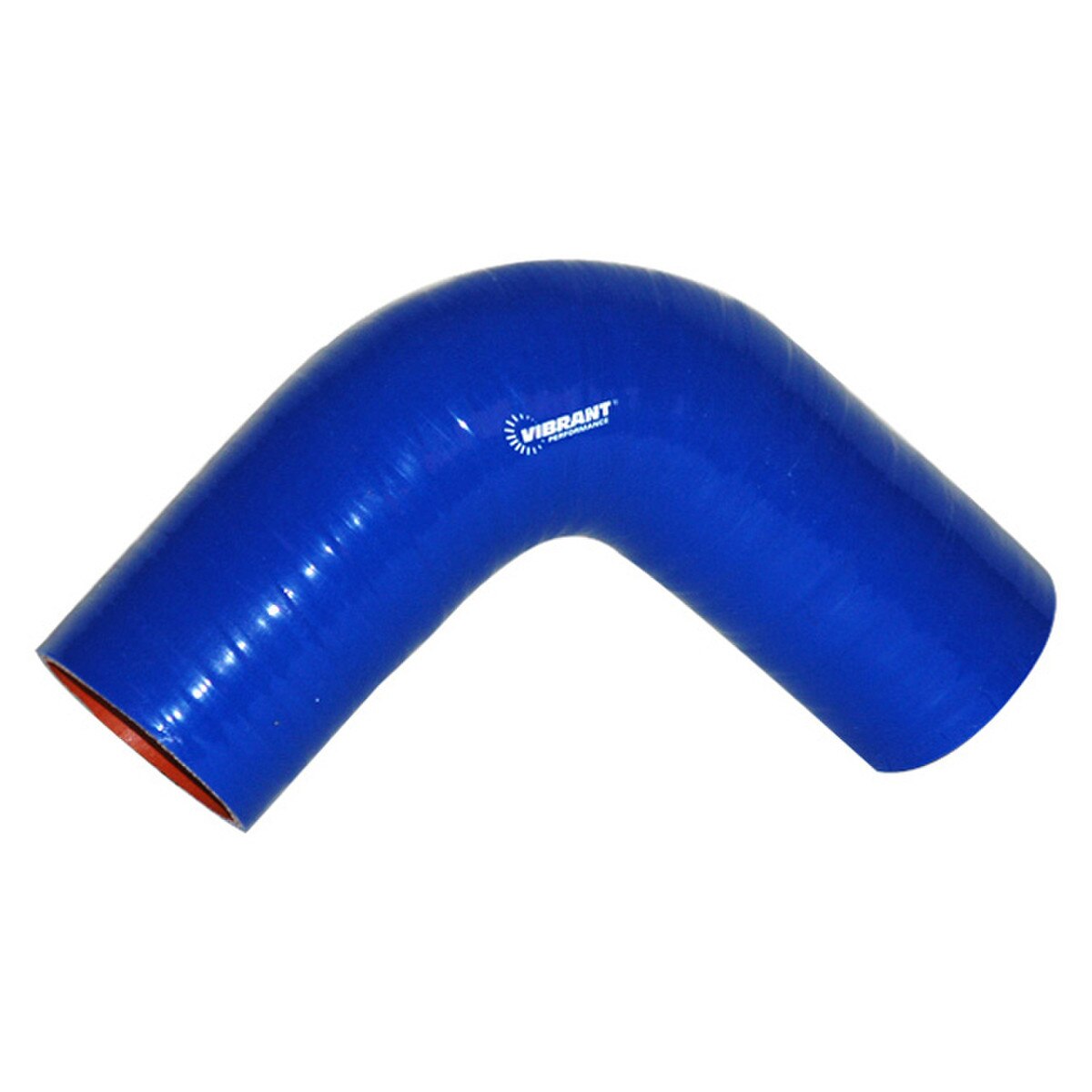

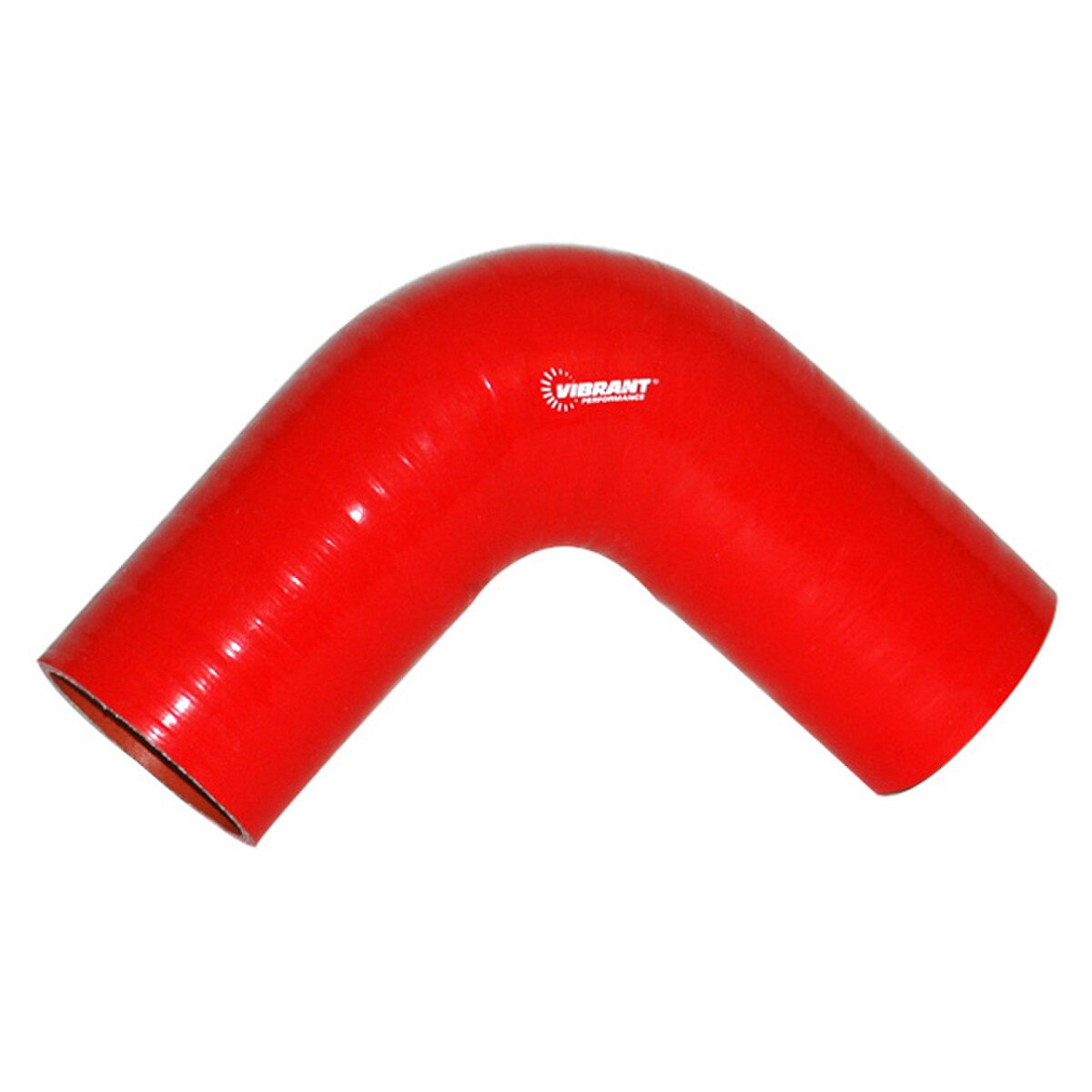

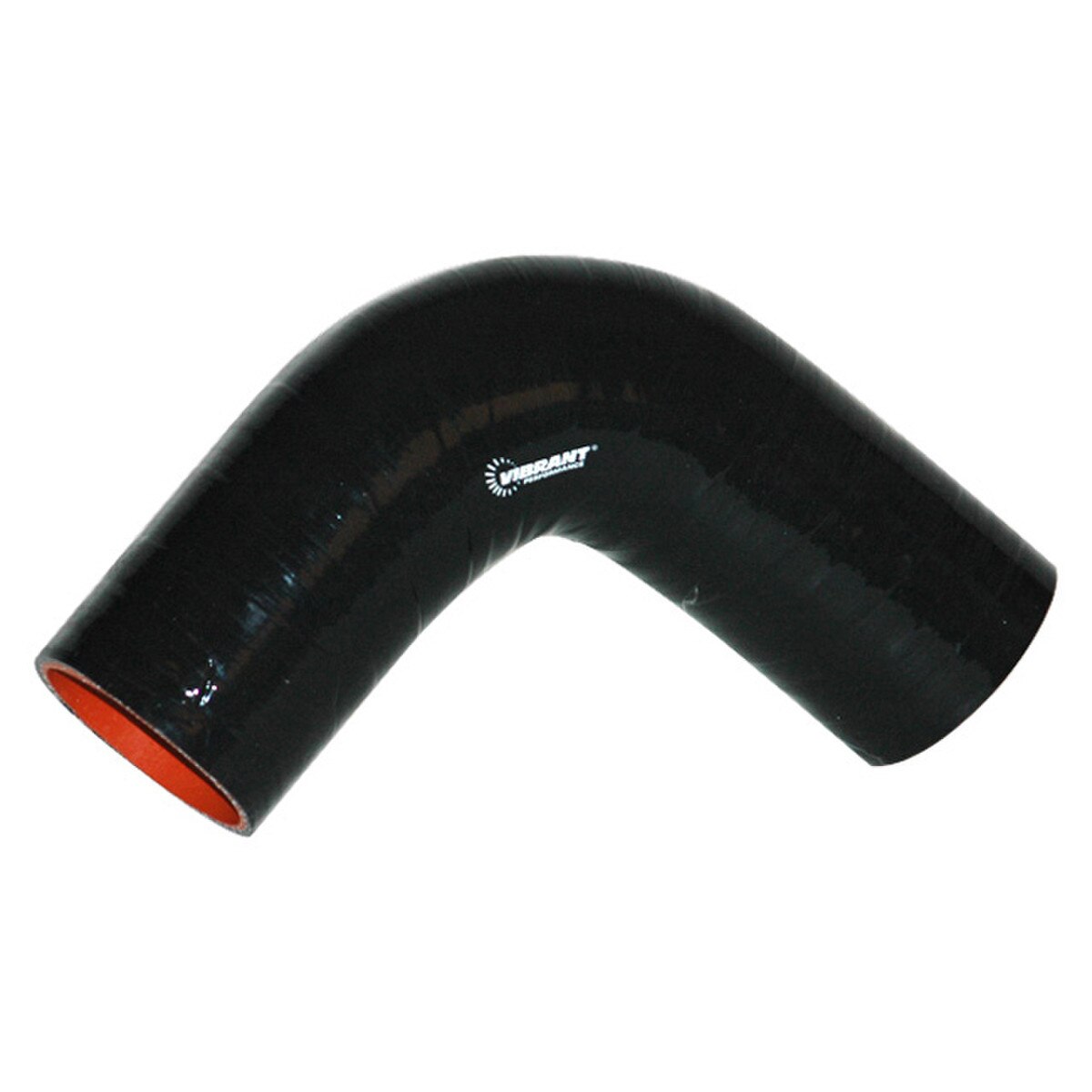

Vibrant Performance makes it easy to complete all of your custom air induction projects with their complete lineup of top quality reinforced silicone connectors. These Vibrant silicone 90 degree bends feature hand wrapped 4-ply polyester reinforced construction, which allows these couplers to withstand high temperatures and high boost conditions without swelling or bursting like inferior rubber connectors. Vibrant's 4 ply silicone 90 degree elbows are rated for temperatures from -65F up to 350F.
 | ||||||
| VMS Part # | MFG Part # | Size (Hose ID) | Radius (CLR) | Legs (A) | Wall Thick. (± 0.02") | Burst Pressure |
|---|---|---|---|---|---|---|
| VIBS904P-150-4-BLK | 2749 | 1.5" (38.1mm) | 1.50" (38.1mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 120 psi |
| VIBS904P-150-4-BLU | 2749B | 1.5" (38.1mm) | 1.50" (38.1mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 120 psi |
| VIBS904P-150-4-RED | 2749R | 1.5" (38.1mm) | 1.50" (38.1mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 120 psi |
| VIBS904P-175-4-BLK | 2843 | 1.75" (44.5mm) | 1.75" (44.45mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 110 psi |
| VIBS904P-175-4-BLU | 2843B | 1.75" (44.5mm) | 1.75" (44.45mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 110 psi |
| VIBS904P-175-4-RED | 2843R | 1.75" (44.5mm) | 1.75" (44.45mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 110 psi |
| VIBS904P-200-4-BLK | 2740 | 2" (50.8mm) | 2.00" (50.8mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 100 psi |
| VIBS904P-200-4-BLU | 2740B | 2" (50.8mm) | 2.00" (50.8mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 100 psi |
| VIBS904P-200-4-RED | 2740R | 2" (50.8mm) | 2.00" (50.8mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 100 psi |
| VIBS904P-225-4-BLK | 2741 | 2.25" (57.2mm) | 2.25" (57.15mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 90 psi |
| VIBS904P-225-4-BLU | 2741B | 2.25" (57.2mm) | 2.25" (57.15mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 90 psi |
| VIBS904P-225-4-RED | 2741R | 2.25" (57.2mm) | 2.25" (57.15mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 90 psi |
| VIBS904P-250-4-BLK | 2742 | 2.5" (63.5mm) | 2.50" (63.5mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 80 psi |
| VIBS904P-250-4-BLU | 2742B | 2.5" (63.5mm) | 2.50" (63.5mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 80 psi |
| VIBS904P-250-4-RED | 2742R | 2.5" (63.5mm) | 2.50" (63.5mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 80 psi |
| VIBS904P-275-4-BLK | 2743 | 2.75" (69.9mm) | 2.75" (69.85mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 70 psi |
| VIBS904P-275-4-BLU | 2743B | 2.75" (69.9mm) | 2.75" (69.85mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 70 psi |
| VIBS904P-275-4-RED | 2743R | 2.75" (69.9mm) | 2.75" (69.85mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 70 psi |
| VIBS904P-300-4-BLK | 2744 | 3" (76.2mm) | 3.00" (76.2mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 60 psi |
| VIBS904P-300-4-BLU | 2744B | 3" (76.2mm) | 3.00" (76.2mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 60 psi |
| VIBS904P-300-4-RED | 2744R | 3" (76.2mm) | 3.00" (76.2mm) | 4.00" (101.6mm) | 0.18" (4.57mm) | 60 psi |
| VIBS904P-325-3.5-BLK | 2747 | 3.25" (82.6mm) | 3.25" (82.55mm) | 3.50" (88.9mm) | 0.18" (4.57mm) | 40 psi |
| VIBS904P-325-3.5-BLU | 2747B | 3.25" (82.6mm) | 3.25" (82.55mm) | 3.50" (88.9mm) | 0.18" (4.57mm) | 40 psi |
| VIBS904P-325-3.5-RED | 2747R | 3.25" (82.6mm) | 3.25" (82.55mm) | 3.50" (88.9mm) | 0.18" (4.57mm) | 40 psi |
| VIBS904P-350-3.5-BLK | 2745 | 3.5" (88.9mm) | 3.50" (88.9mm) | 3.50" (88.9mm) | 0.18" (4.57mm) | 40 psi |
| VIBS904P-350-3.5-BLU | 2745B | 3.5" (88.9mm) | 3.50" (88.9mm) | 3.50" (88.9mm) | 0.18" (4.57mm) | 40 psi |
| VIBS904P-350-3.5-RED | 2745R | 3.5" (88.9mm) | 3.50" (88.9mm) | 3.50" (88.9mm) | 0.18" (4.57mm) | 40 psi |
| VIBS904P-400-3-BLK | 2746 | 4" (101.6mm) | 4.00" (101.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBS904P-400-3-BLU | 2746B | 4" (101.6mm) | 4.00" (101.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBS904P-400-3-RED | 2746R | 4" (101.6mm) | 4.00" (101.6mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBS904P-450-3-BLK | 2748 | 4.5" (114.3mm) | 4.50" (114.3mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBS904P-450-3-BLU | 2748B | 4.5" (114.3mm) | 4.50" (114.3mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
| VIBS904P-450-3-RED | 2748R | 4.5" (114.3mm) | 4.50" (114.3mm) | 3.00" (76.2mm) | 0.18" (4.57mm) | 40 psi |
