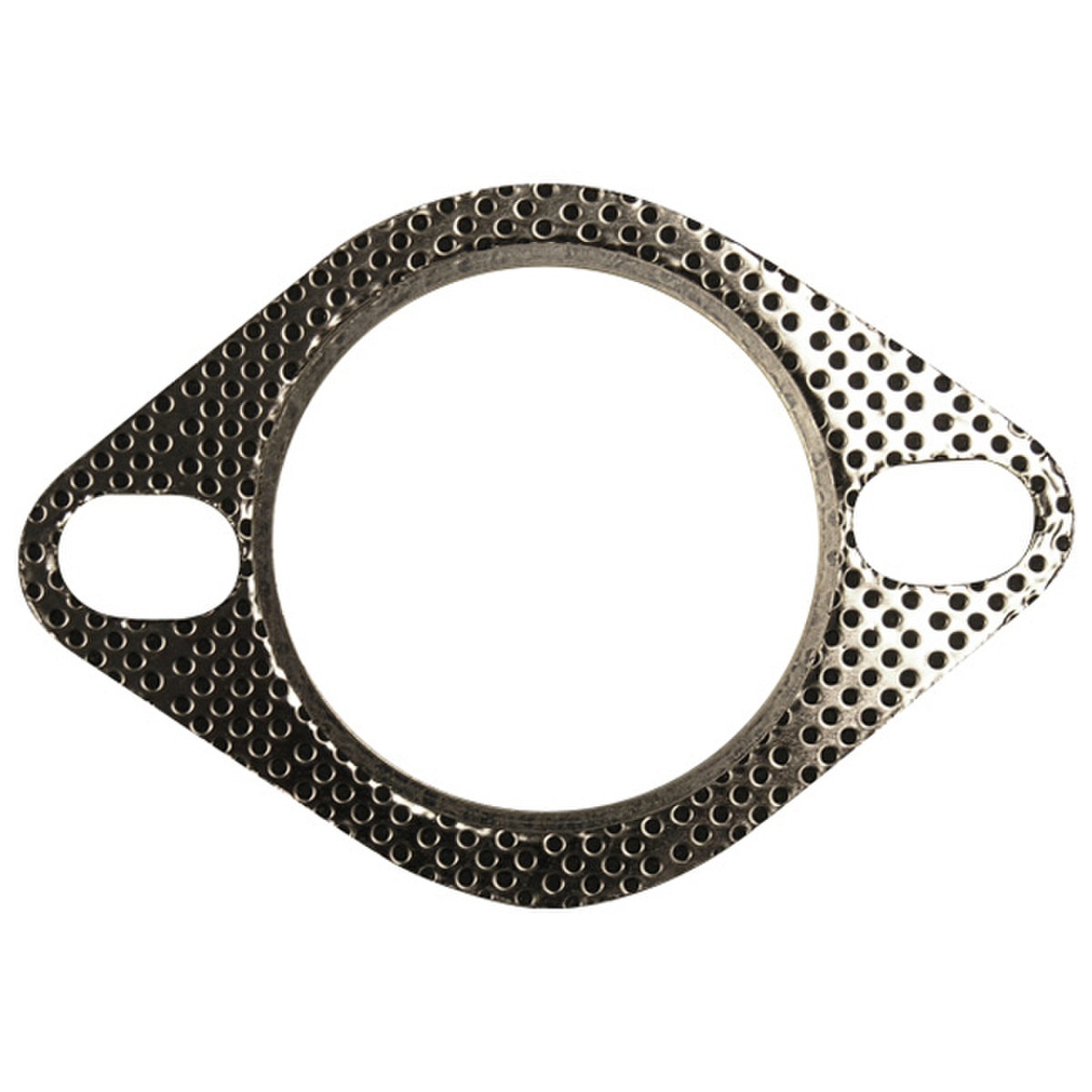

Vibrant 2-Bolt Exhaust Flange Gasket
These 2 bolt exhaust flange gaskets are constructed of composite graphite. Designed to mate same size exhaust flanges, this gasket ensures a tight accurate seal between exhaust components each and every time These gaskets are suitable for high temperature service and are available in sizes ranging from 2" through 4".
 | |||
| VMS Part # | MFG Part # | Size (ID) | Bolt Circle (BC) |
|---|---|---|---|
| VIBEG2B-200 | 1455 | 2.00" (51mm) | 3.50" (89mm) |
| VIBEG2B-225 | 1456 | 2.25" (57mm) | 4.00" (102mm) |
| VIBEG2B-250 | 1457 | 2.50" (64mm) | 4.00" (102mm) |
| VIBEG2B-275 | 1465 | 2.75" (70mm) | 3.89" (99mm) |
| VIBEG2B-300 | 1458 | 3.00" (76mm) | 4.15" (105mm) |
| VIBEG2B-400 | 1459 | 4.00" (102mm) | 5.00" (127mm) |
