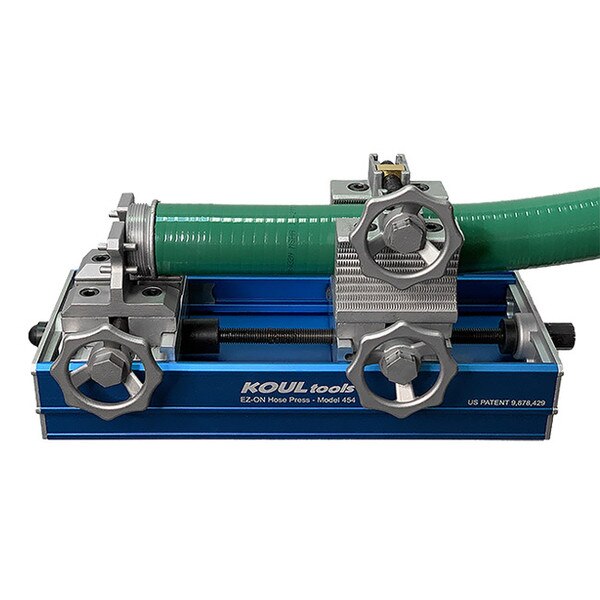

KOUL Tools Model 454 EZ-ON Hose Press for 1" to 2" Hose
The KOUL Tools EZ-ON Hose Press Model 454 installs 1 to 2 inch barbed fittings quickly and safely. The vise secures both straight and angled fittings and the lead screw drive system powers the hose onto the barb in just seconds. Light and compact, the the EZ-ON Hose Press 454 is ideal for both in-house and on-site hose assembly.
KOUL Tools Model 454 EZ-ON Hose Press Features:
- Relatively lightweight (19.5 lbs)
- Impact-gun operated
- Removable hose clamps and vise
- Possible to engineer custom parts for non-standard fittings and hoses
- Eliminated risk of repetitive motion injury
| AN Threads | ||||
|---|---|---|---|---|
| AN Size | Hex Nut Size | Tube Diameter | Thread Size (SAE) | Max Torque (ft-lb) |
| -2 | - | 1/8" | 5/16-24 | - |
| -3 | 1/2" | 3/16" | 3/8-24 | 8.75 |
| -4 | 9/16" | 1/4" | 7/16-20 | 11.5 |
| -6 | 11/16" | 3/8" | 9/16-18 | 16.25 |
| -8 | 7/8" | 1/2" | 3/4-16 | 29 |
| -10 | 1" | 5/8" | 7/8-14 | 35 |
| -12 | 1-1/4" | 3/4" | 1 1/16-12 | 45 |
| -16 | 1-1/2" | 1" | 1 5/16-12 | 70 |
| -20 | 1-7/8" | 1-1/4" | 1 5/8-12 | 85 |
| -24 | - | 1-1/2" | 1 7/8-12 | - |
| -28 | - | 1-3/4" | 2 1/4-12 | - |
| -32 | - | 2" | 2 1/2-12 | - |
