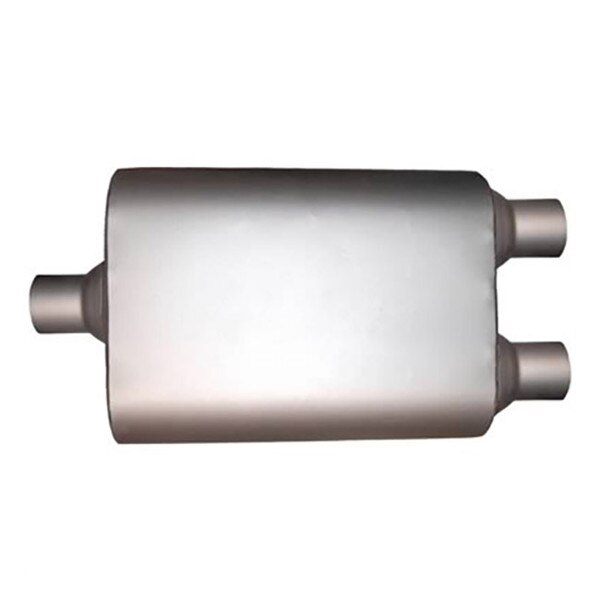

Jones Exhaust Max Flow Muffler - 3" Center x 2.5" Dual, 5" x 8" x 18" Body
Jones Exhaust Max Flow Mufflers are designed to provide performance and sound improvements for your car. The design of the Max Flow muffler provides for superior exhaust flow through the muffler. The mufflers are constructed from heavy duty 409 stainless steel for maximum service life and corrosion resistance. These budget friendly mufflers provide premium muffler features and performance, without the typical premium performance price tag.
| Part # | Inlet Diameter | Inlet Position | Outlet Diameter | Outlet Position | Body Length | Body Width | Body Height | Overall Length |
|---|---|---|---|---|---|---|---|---|
| MF1224 | 2.00" (50.8mm) | Offset | 2.00" (50.8mm) | Center | 14.00" (355.6mm) | 9.00" (228.6mm) | 4.00" (101.6mm) | 20.00" (508.0mm) |
| MF1225 | 2.25" (57.2mm) | Offset | 2.25" (57.2mm) | Center | 14.00" (355.6mm) | 9.00" (228.6mm) | 4.00" (101.6mm) | 20.00" (508.0mm) |
| MF1226 | 2.50" (63.5mm) | Offset | 2.50" (63.5mm) | Center | 14.00" (355.6mm) | 9.00" (228.6mm) | 4.00" (101.6mm) | 20.00" (508.0mm) |
| MF1229 | 3.00" (76.2mm) | Offset | 3.00" (76.2mm) | Center | 14.00" (355.6mm) | 9.00" (228.6mm) | 4.00" (101.6mm) | 20.00" (508.0mm) |
| MF1234 | 2.00" (50.8mm) | Offset | 2.00" (50.8mm) | Offset | 14.00" (355.6mm) | 9.00" (228.6mm) | 4.00" (101.6mm) | 20.00" (508.0mm) |
| MF1235 | 2.25" (57.2mm) | Offset | 2.25" (57.2mm) | Offset | 14.00" (355.6mm) | 9.00" (228.6mm) | 4.00" (101.6mm) | 20.00" (508.0mm) |
| MF1236 | 2.50" (63.5mm) | Offset | 2.50" (63.5mm) | Offset | 14.00" (355.6mm) | 9.00" (228.6mm) | 4.00" (101.6mm) | 20.00" (508.0mm) |
| MF1255 | 2.25" (57.2mm) | Offset | 2.25" (57.2mm) | Center | 18.00" (457.2mm) | 9.00" (228.6mm) | 4.00" (101.6mm) | 24.00" (609.6mm) |
| MF1256 | 2.50" (63.5mm) | Offset | 2.50" (63.5mm) | Center | 18.00" (457.2mm) | 9.00" (228.6mm) | 4.00" (101.6mm) | 24.00" (609.6mm) |
| MF1259 | 3.00" (76.2mm) | Offset | 3.00" (76.2mm) | Center | 18.00" (457.2mm) | 9.00" (228.6mm) | 4.00" (101.6mm) | 24.00" (609.6mm) |
| MF1265 | 2.25" (57.2mm) | Offset | 2.25" (57.2mm) | Offset | 18.00" (457.2mm) | 9.00" (228.6mm) | 4.00" (101.6mm) | 24.00" (609.6mm) |
| MF1266 | 2.50" (63.5mm) | Offset | 2.50" (63.5mm) | Offset | 18.00" (457.2mm) | 9.00" (228.6mm) | 4.00" (101.6mm) | 24.00" (609.6mm) |
| MF2149 | 2.25" (57.2mm) | Center | 2.25" (57.2mm) | Dual | 14.00" (355.6mm) | 8.00" (203.2mm) | 5.00" (127.0mm) | 20.00" (508.0mm) |
| MF2158 | 2.50" (63.5mm) | Center | 2.50" (63.5mm) | Dual | 14.00" (355.6mm) | 8.00" (203.2mm) | 5.00" (127.0mm) | 20.00" (508.0mm) |
| MF2198 | 3.00" (76.2mm) | Center | 2.50" (63.5mm) | Dual | 14.00" (355.6mm) | 8.00" (203.2mm) | 5.00" (127.0mm) | 20.00" (508.0mm) |
| MF2251 | 2.50" (63.5mm) | Center | 2.25" (57.2mm) | Dual | 18.00" (457.2mm) | 8.00" (203.2mm) | 5.00" (127.0mm) | 24.00" (609.6mm) |
| MF2255 | 2.25" (57.2mm) | Offset | 2.25" (57.2mm) | Center | 18.00" (457.2mm) | 8.00" (203.2mm) | 5.00" (127.0mm) | 24.00" (609.6mm) |
| MF2256 | 2.50" (63.5mm) | Offset | 2.50" (63.5mm) | Center | 18.00" (457.2mm) | 8.00" (203.2mm) | 5.00" (127.0mm) | 24.00" (609.6mm) |
| MF2259 | 3.00" (76.2mm) | Offset | 3.00" (76.2mm) | Center | 18.00" (457.2mm) | 8.00" (203.2mm) | 5.00" (127.0mm) | 24.00" (609.6mm) |
| MF2265 | 2.50" (63.5mm) | Offset | 2.25" (57.2mm) | Dual | 18.00" (457.2mm) | 8.00" (203.2mm) | 5.00" (127.0mm) | 24.00" (609.6mm) |
| MF2268 | 2.50" (63.5mm) | Center | 2.50" (63.5mm) | Dual | 18.00" (457.2mm) | 8.00" (203.2mm) | 5.00" (127.0mm) | 24.00" (609.6mm) |
| MF2278 | 3.00" (76.2mm) | Center | 2.25" (57.2mm) | Dual | 18.00" (457.2mm) | 8.00" (203.2mm) | 5.00" (127.0mm) | 24.00" (609.6mm) |
| MF2288 | 3.00" (76.2mm) | Center | 2.50" (63.5mm) | Dual | 18.00" (457.2mm) | 8.00" (203.2mm) | 5.00" (127.0mm) | 24.00" (609.6mm) |
| MF2289 | 3.00" (76.2mm) | Offset | 3.00" (76.2mm) | Center | 24.00" (609.6mm) | 8.00" (203.2mm) | 5.00" (127.0mm) | 30.00" (762.0mm) |
| MF2298 | 3.00" (76.2mm) | Center | 3.00" (76.2mm) | Dual | 18.00" (457.2mm) | 8.00" (203.2mm) | 5.00" (127.0mm) | 24.00" (609.6mm) |
| MF2468 | 2.50" (63.5mm) | Dual | 2.50" (63.5mm) | Dual | 18.00" (457.2mm) | 8.00" (203.2mm) | 5.00" (127.0mm) | 24.00" (609.6mm) |
| MF2469 | 3.00" (76.2mm) | Dual | 3.00" (76.2mm) | Dual | 18.00" (457.2mm) | 8.00" (203.2mm) | 5.00" (127.0mm) | 24.00" (609.6mm) |
| MF2568 | 2.50" (63.5mm) | Dual | 2.50" (63.5mm) | Dual | 22.00" (558.8mm) | 11.00" (279.4mm) | 5.00" (127.0mm) | 28.00" (711.2mm) |
| MF2579 | 3.00" (76.2mm) | Center | 3.00" (76.2mm) | Center | 22.00" (558.8mm) | 11.00" (279.4mm) | 5.00" (127.0mm) | 28.00" (711.2mm) |
| MF2588 | 3.00" (76.2mm) | Center | 2.50" (63.5mm) | Dual | 22.00" (558.8mm) | 11.00" (279.4mm) | 5.00" (127.0mm) | 28.00" (711.2mm) |
| MF2589 | 3.00" (76.2mm) | Offset | 3.00" (76.2mm) | Center | 22.00" (558.8mm) | 11.00" (279.4mm) | 5.00" (127.0mm) | 28.00" (711.2mm) |
| MF2590 | 3.00" (76.2mm) | Center | 3.00" (76.2mm) | Dual | 22.00" (558.8mm) | 11.00" (279.4mm) | 5.00" (127.0mm) | 28.00" (711.2mm) |
