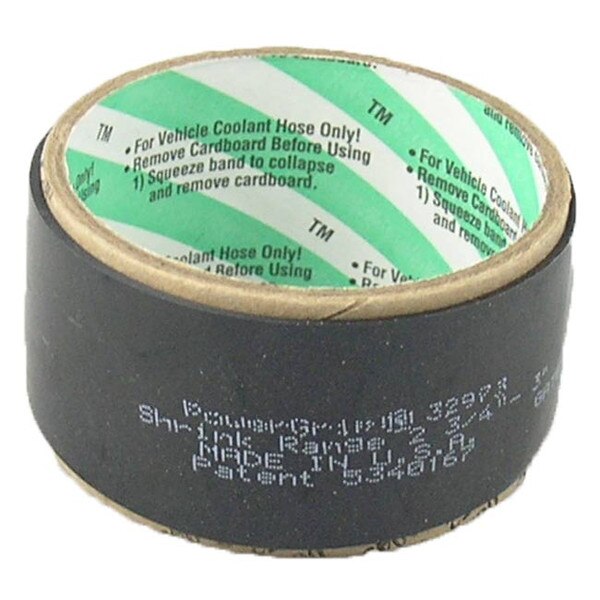

Gates PowerGrip SB Hose Clamps
Gates® PowerGrip® SB Clamps are maintenance-free shrink clamps that retain dynamic tension and never need retightening. Clamp down better in all conditions and temperature extremes. These hose clamps stop leaks, even on out-of-round applications.
Gates SB PowerGrip Clamp Features & Advantages:
- Easy to install with ordinary heat gun
- Wider sealing area entraps connector bead
- Conform to any shape of hose and housing, even out-of-round fittings
- Made from a heat-sensitive thermoplastic with a memory to prevent over- or under-tightening
- Can be used with all brands of silicone hose
- Rated for -40°F - 302°F (-40°C - 150°C)
- Sold Individually
| Gates # | Size | Nom. Hose ID | Fits Hose OD |
|---|---|---|---|
| 32915 | SB15 | 1/4" | 1/2" to 11/18" |
| 32919 | SB19 | 3/8" | 11/16" to 13/16" |
| 32922 | SB22 | 1/2" | 13/16" to 15/16" |
| 32925 | SB25 | 5/8" | 15/16" to 1-1/16" |
| 32929 | SB29 | 3/4" | 1-1/16" to 1-3/16" |
| 32932 | SB32 | 7/8" | 1-3/16" to 1-5/16" |
| 32934 | SB34 | 1" | 1-5/16" to 1-1/2" |
| 32941 | SB41 | 1-1/4" | 1-1/2" to 1-3/4" |
| 32948 | SB48 | 1-1/2" | 1-3/4" to 2" |
| 32954 | SB54 | 1-3/4" | 2" to 2-1/4" |
| 32960 | SB60 | 2" | 2-1/4" to 2-1/2" |
| 32967 | SB67 | 2-1/4" | 2-1/2" to 2-3/4" |
| 32973 | SB73 | 2-1/2" | 2-3/4" to 3" |
| 32979 | SB79 | 2-3/4" | 3" to 3-1/4" |
| 32986 | SB86 | 3" | 3-1/4" to 3-1/2" |
| 32990 | SB90 | 3-1/8" | 3-1/2" to 3-5/8" |
