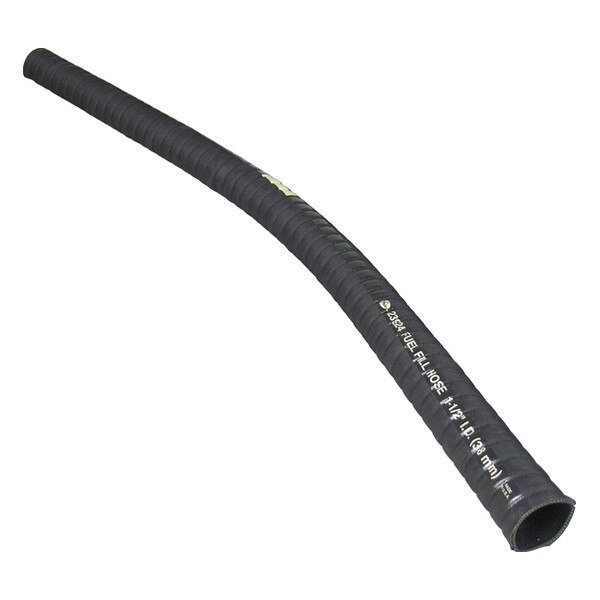

Gates Fuel Fill Hose
Gates® Flexible Fuel Fill Hose is a universally designed hose for transferring fuel from the vehicle fill neck into the fuel tank. This fuel fill hose will work on many passenger cars and light trucks as a factory replacement, as well as for auxiliary fuel tanks on recreational vehicles. For use with most types of fuel, especially resistant to gasoline and diesel.
Gates Fuel Fill Hose Features:
- Suitable for use with gasoline, gasohol blends of ethanol, methanol, ethers, diesel and biodiesel to B20 (up to maximum concentrations allowed by the EPA)
- Corrugated cover with helical wire reinforcement
- Features a high quality nitrile tube
- Meets requirements of SAE 30R5
- Cuts easily with knife and wire cutters
- -40°F to 212° (-40°C to +100°C) Temperature Rating with gasoline blends
- -40°F to 125°F (-40°C to +51°C) Temperature Rating with biodiesel (B20)
- Sold in 3 ft. lengths
- Available from 1-1/4" up to 2-1/2" ID
- (2-1/2" is special order. Minimum order quantity applies. Please contact sales for support)
| Gates # | Hose ID | Length | Working Pressure |
|---|---|---|---|
| 23963 | 1-1/4" | 3' | 20 psi |
| 23924 | 1-1/2" | 3' | 20 psi |
| 23930 | 1-7/8" | 3' | 20 psi |
| 23932 | 2" | 3' | 20 psi |
| 23936 | 2-1/4" | 3' | 20 psi |
| 23940 | 2-1/2" | 3' | 20 psi |
