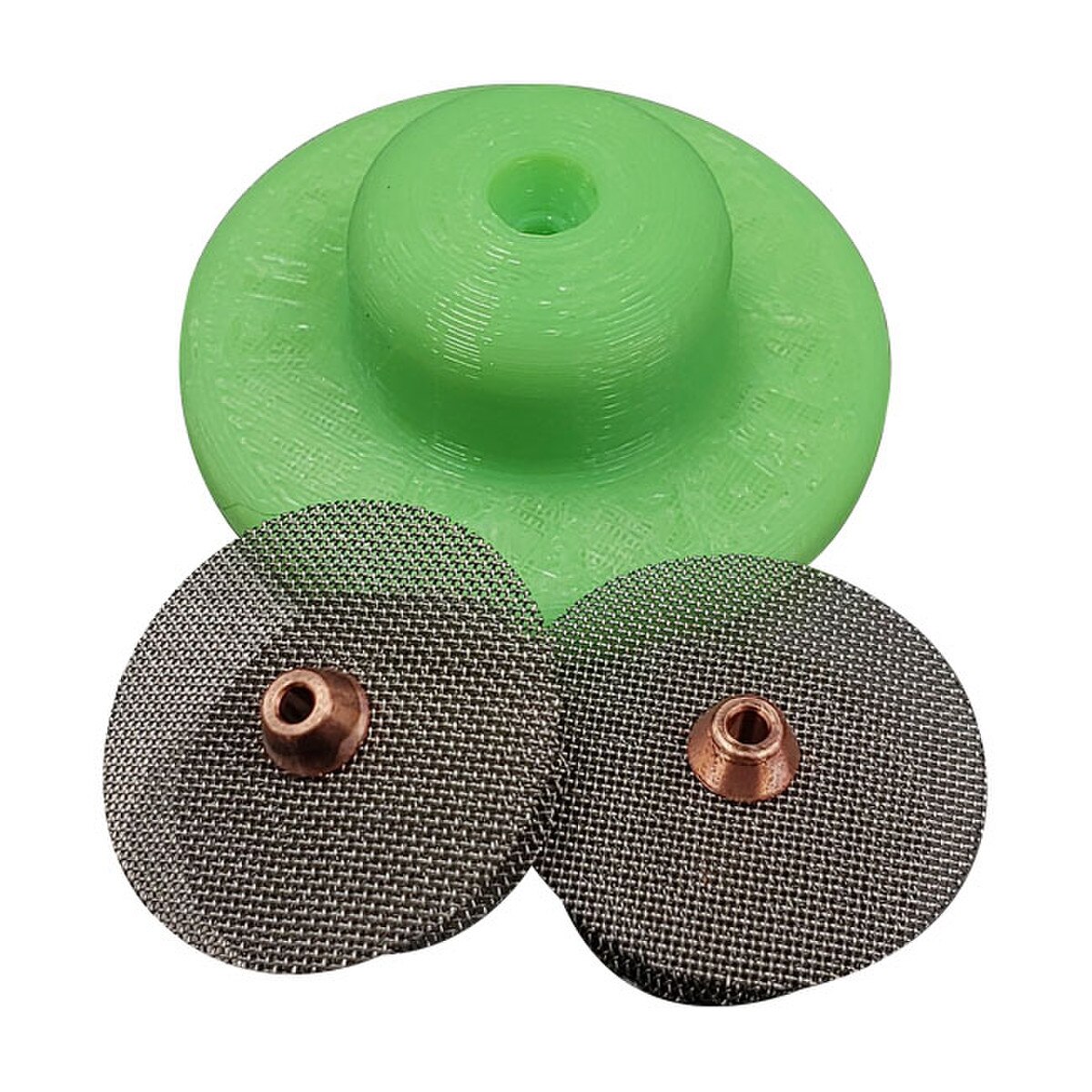

Furick Cup Jazzy #10 Screen Install Tool and 2 Replacement Diffusers, 1/16" (1.6mm)

This kit contains the Furick Cup Jazzy #10 Screen Install Tool and 2 replacement 1/16" (1.6mm) diffuser screens for the Jazzy #10 welding cups, to refurbish your welding cups back to "like new" condition. The tool is precision machined from PVC for a slick finish, simplicity, and durability. Installing the screens is a breeze, just following these 3 simple steps.

• Step 1 – Install the empty Glass or Ceramic Cup on your torch with a 1/16" tungsten installed.
• Step 2 – Install the screen over the Tungsten, cupped side first.
• Step 3 – Slide on plastic tool in and evenly apply pressure to the side flange of tool, with a little pressure the screen should seat in the Cup perfectly.

Note: You want the screen to look like an hour glass when installed with the screens sealing against the sidewalls of the glass/ceramic.

Note: You may have to Cup the screen with your fingers more if it snags on the Ceramic.
