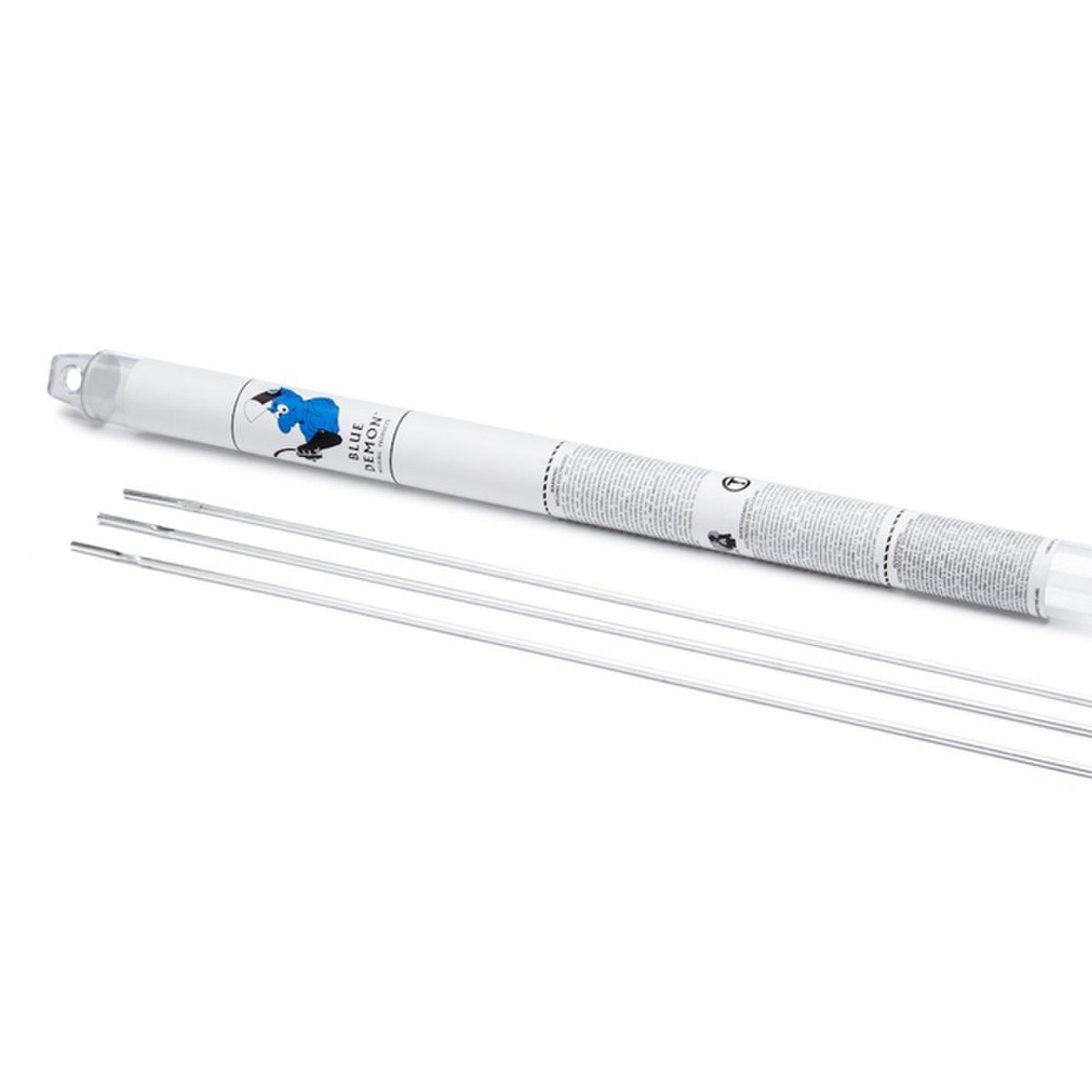

Blue Demon ERTi-2 Titanium Welding Rods
Blue Demon ERTi-2 (Commercially Pure) Titanium is a TIG filler metal used for welding commercial pure titanium alloys commonly found in applications requiring high temperature resistance and resistance to chemical reagents. Although there are four grades of Commercial Pure Titanium filler metals, C.P. Grade 2 (ERTi-2) is the most popular because of its good balance of strength, formability and weldability. The most common applications of ERTi-2 are the aircraft industry, where tensile strength and weight ratios are very critical. Other uses would include cryogenic and petrochemical applications such as chemical process heat exchangers, pressure vessels and piping systems, pulp bleaching systems, electrochemical and chemical storage tanks.
Typical ERTi-2 Wire Chemistry | ||||
---|---|---|---|---|
C | 0.03% | |||
O | 0.08-0.16% | |||
Si | 0.40-0.70% | |||
H | 0.008% | |||
N | 0.015% | |||
Fe | 0.12% | |||
Ti | Remainder |
Typical ERTi-2 Properties | |
---|---|
Yield Strength | 40 ksi |
Tensile Strength | 50 ksi |
Elongation | 20% min |
Available Diameters & Operating Range | |
---|---|
1/16" | 180A |
3/32" | 190A |
1/8" | 205A |
Blue Demon Approx. Rods Per Poung | |||||||
Alloy | 0.35" | 0.45" | 1/16" | 3/32" | 1/8" | 5/32" | 3/16" |
---|---|---|---|---|---|---|---|
ER308L/LSI | 103 EA | 62 EA | 32 EA | 14 EA | 8 EA | 5 EA | 4 EA |
ER309L/LSI | 103 EA | 62 EA | 31 EA | 14 EA | 8 EA | 5 EA | 4 EA |
ER312 | 103 EA | 62 EA | 32 EA | 14 EA | 8 EA | 5 EA | 4 EA |
ER316L/LSI | 103 EA | 62 EA | 32 EA | 14 EA | 8 EA | 5 EA | 4 EA |
ER4043 | N/A | 170 EA | 94 EA | 42 EA | 23 EA | 15 EA | 11 EA |
ER5356 | N/A | 170 EA | 96 EA | 42 EA | 24 EA | 15 EA | 11 EA |
ER70S2 | 103 EA | 62 EA | 32 EA | 14 EA | 8 EA | 5 EA | 4 EA |
ER80S-D2 | 103 EA | 62 EA | 32 EA | 14 EA | 7 EA | 5 EA | 4 EA |
ERAZ61A | N/A | N/A | 156 EA | 56 EA | 34 EA | N/A | N/A |
ERAZ92A | N/A | N/A | 156 EA | 56 EA | 34 EA | N/A | N/A |
ERNI99 | N/A | N/A | 28 EA | 13 EA | 7 EA | 4 EA | N/A |
ERTI-2 | 176 EA | 110 EA | 56 EA | 25 EA | 14 EA | N/A | N/A |
RBCUZN-C (BARE) | N/A | N/A | 28 EA | 13 EA | 7 EA | 5 EA | 4 EA |
RBCUZN-C (COATED) | N/A | N/A | 43 EA (18") | 11 EA | 6 EA | 5 EA | 3 EA |
R45 | N/A | N/A | 32 EA | 14 EA | 8 EA | 5 EA | 4 EA |
R60 | N/A | N/A | 32 EA | 14 EA | 8 EA | 5 EA | 4 EA |
ERCUSI-A (SILBRZ) | 103 EA | 62 EA | 30 EA | 13 EA | 7 EA | 4 EA | N/A |
Recommended Tungsten Electrodes | ||||
Alloy | Thickness | Current | Tungsten | Gas |
---|---|---|---|---|
Aluminum | All | AC | Pure or Zirconiated | Ar or Ar/He |
Aluminum | > 1/8" thick | DCEN | Thoriated | Ar or Ar/He |
Aluminum | < 1/8" thick | DCEP | Thoriated or Zirconiated | Argon |
Copper, Copper Alloys | All | DCEN | Thoriated | Ar or Ar/He |
Copper, Copper Alloys | < 1/8" thick | AC | Pure or Zirconiated | Argon |
Magnesium Alloys | All | AC | Pure or Zirconiated | Argon |
Magnesium Alloys | < 1/8" thick | DCEP | Thoriated or Zirconiated | Argon |
Nickel, Nickel Alloys | All | DCEN | Thoriated | Argon |
Plain Carbon, Low Alloy Steels | All | DCEN | Pure or Zirconiated | Ar or Ar/He |
Plain Carbon, Low Alloy Steels | < 1/8" thick | AC | Thoriated | Argon |
Stainless Steel | All | DCEN | Thoriated | Ar or Ar/He |
Stainless Steel | < 1/8" thick | AC | Pure or Zirconiated | Argon |
Titanium | All | DCEN | Thoriated | Argon |
Zirconium | All | DCEN | Thoriated | Argon |
