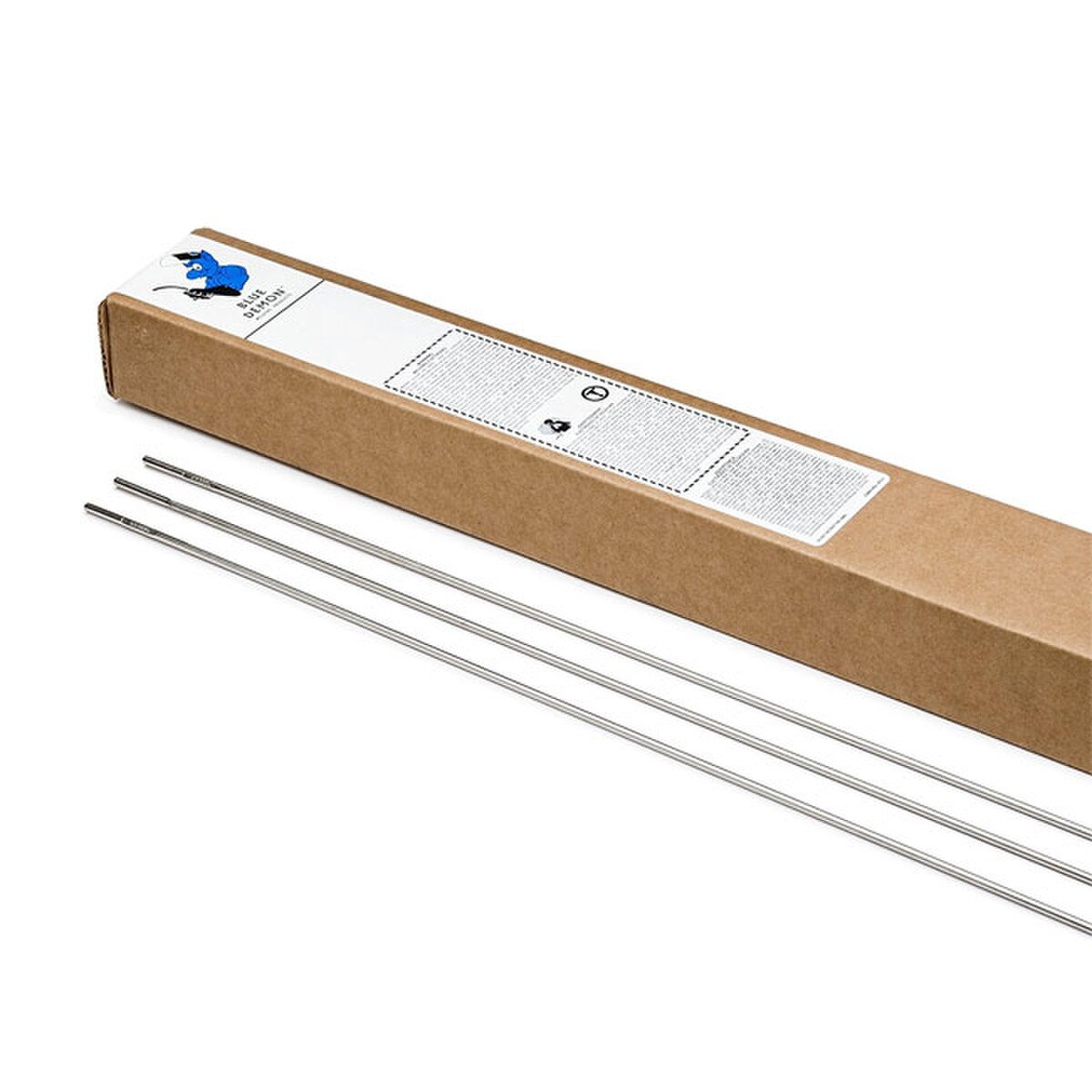

Blue Demon ER4043 Aluminum TIG Welding Rods
Blue Demon ER4043 Aluminum TIG Welding Rod is a general purpose type aluminum welding wire. It is one of the oldest and most widely used welding and brazing alloys. This aluminum alloy contains silicon additives, which result in improved fluidity (wetting action) of the weld pool and also produces a weld less sensitive to cracking. Its bright weld finish makes it a popular choice of welders. ER4043 TIG Rod can be used to weld various grades of aluminum.
| Typical ER4043 Wire Chemistry | ||||
|---|---|---|---|---|
| Si | .5-6.0% | |||
| Fe | 0.80% | |||
| Cu | 0.30% | |||
| Mn | 0.05% | |||
| Mg | 0.05% | |||
| Zn | 0.10% | |||
| Ti | 0.20% | |||
| Other | 0.15% | |||
| Al | Remainder | |||
| Typical ER4043 Properties | |
|---|---|
| Melting Range | 1170°F - 1605°F |
| Conductivity | 42% IACS(- O) |
| Density | 0.097 lbs/cu in. |
| Anodized Color | Gray |
| Tensile Strength | 29 ksi |
| Available Diameters & Operating Range | |
|---|---|
| 0.030" | 100-120A |
| 0.035" | 110-170A |
| 3/64" | 150-190A |
| 1/16" | 200-300A |
| 3/32" | 320-330A |
| Blue Demon Approx. Rods Per Poung | |||||||
| Alloy | 0.35" | 0.45" | 1/16" | 3/32" | 1/8" | 5/32" | 3/16" |
|---|---|---|---|---|---|---|---|
| ER308L/LSI | 103 EA | 62 EA | 32 EA | 14 EA | 8 EA | 5 EA | 4 EA |
| ER309L/LSI | 103 EA | 62 EA | 31 EA | 14 EA | 8 EA | 5 EA | 4 EA |
| ER312 | 103 EA | 62 EA | 32 EA | 14 EA | 8 EA | 5 EA | 4 EA |
| ER316L/LSI | 103 EA | 62 EA | 32 EA | 14 EA | 8 EA | 5 EA | 4 EA |
| ER4043 | N/A | 170 EA | 94 EA | 42 EA | 23 EA | 15 EA | 11 EA |
| ER5356 | N/A | 170 EA | 96 EA | 42 EA | 24 EA | 15 EA | 11 EA |
| ER70S2 | 103 EA | 62 EA | 32 EA | 14 EA | 8 EA | 5 EA | 4 EA |
| ER80S-D2 | 103 EA | 62 EA | 32 EA | 14 EA | 7 EA | 5 EA | 4 EA |
| ERAZ61A | N/A | N/A | 156 EA | 56 EA | 34 EA | N/A | N/A |
| ERAZ92A | N/A | N/A | 156 EA | 56 EA | 34 EA | N/A | N/A |
| ERNI99 | N/A | N/A | 28 EA | 13 EA | 7 EA | 4 EA | N/A |
| ERTI-2 | 176 EA | 110 EA | 56 EA | 25 EA | 14 EA | N/A | N/A |
| RBCUZN-C (BARE) | N/A | N/A | 28 EA | 13 EA | 7 EA | 5 EA | 4 EA |
| RBCUZN-C (COATED) | N/A | N/A | 43 EA (18") | 11 EA | 6 EA | 5 EA | 3 EA |
| R45 | N/A | N/A | 32 EA | 14 EA | 8 EA | 5 EA | 4 EA |
| R60 | N/A | N/A | 32 EA | 14 EA | 8 EA | 5 EA | 4 EA |
| ERCUSI-A (SILBRZ) | 103 EA | 62 EA | 30 EA | 13 EA | 7 EA | 4 EA | N/A |

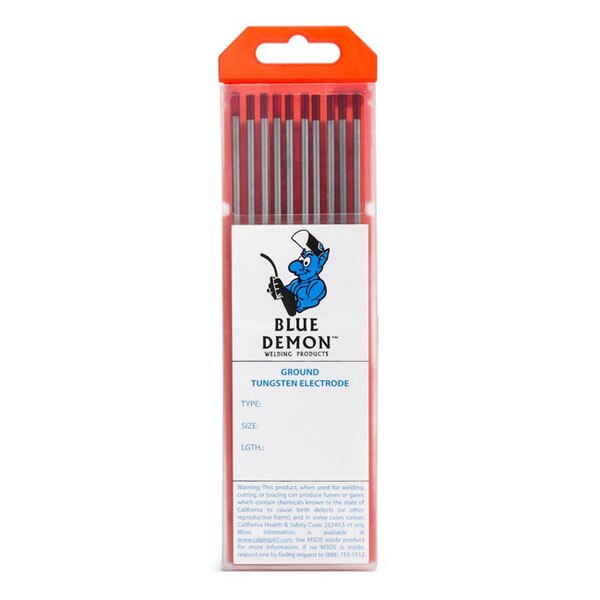

| Recommended Tungsten Electrodes | ||||
| Alloy | Thickness | Current | Tungsten | Gas |
|---|---|---|---|---|
| Aluminum | All | AC | Pure or Zirconiated | Ar or Ar/He |
| Aluminum | > 1/8" thick | DCEN | Thoriated | Ar or Ar/He |
| Aluminum | < 1/8" thick | DCEP | Thoriated or Zirconiated | Argon |
| Copper, Copper Alloys | All | DCEN | Thoriated | Ar or Ar/He |
| Copper, Copper Alloys | < 1/8" thick | AC | Pure or Zirconiated | Argon |
| Magnesium Alloys | All | AC | Pure or Zirconiated | Argon |
| Magnesium Alloys | < 1/8" thick | DCEP | Thoriated or Zirconiated | Argon |
| Nickel, Nickel Alloys | All | DCEN | Thoriated | Argon |
| Plain Carbon, Low Alloy Steels | All | DCEN | Pure or Zirconiated | Ar or Ar/He |
| Plain Carbon, Low Alloy Steels | < 1/8" thick | AC | Thoriated | Argon |
| Stainless Steel | All | DCEN | Thoriated | Ar or Ar/He |
| Stainless Steel | < 1/8" thick | AC | Pure or Zirconiated | Argon |
| Titanium | All | DCEN | Thoriated | Argon |
| Zirconium | All | DCEN | Thoriated | Argon |
