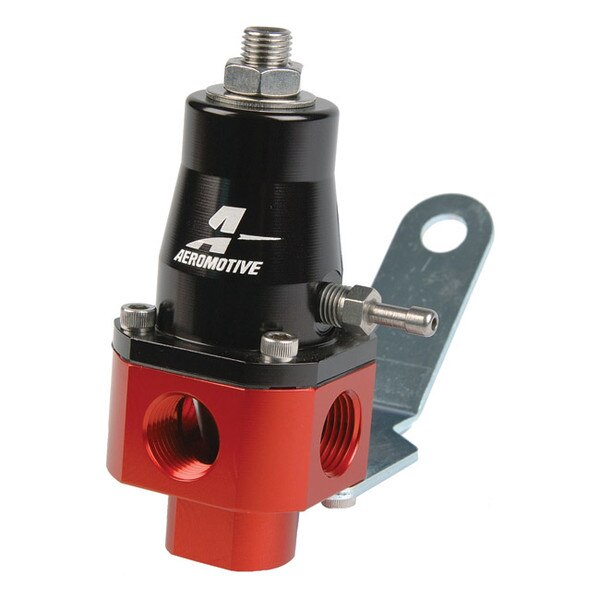

Aeromotive Universal Bypass Regulator

The Aeromotive 13301 Universal Bypass Regulator is a dual purpose, universal regulator for EFI or Carbureted and street or strip applications. Base pressure adjustable from 3 to 20 psi with standard spring (pre-installed) or from 20 to 60 psi with high pressure spring (included). Offers the full flow and rock steady fuel pressure that only a dynamic Aeromotive bypass regulator provides.

Note: Requires a return line to be installed from the bottom of the regulator to the top of the tank.

Aeromotive 13301 Universal Bypass Regulator Features:
• Capable of regulating any fuel pump between 100 and 250 gph
• Fuel pressure rises on a 1:1 ratio when referencing boost
• 3/8" NPT Ports
• (1) Inlet and (3) Outlets on the Main Body
• (1) Return Port on the Bottom
• Bypass design provides the ultimate, dynamic fuel pressure control
