Aeromotive Stealth Universal Fuel Pump Assembly - A1000

Aeromotive 18668 Universal A1000 Stealth Pump Assembly is design for the custom tank builder or fabricator. Now custom tanks and fuel cells can easily and affordably feature an in-tank fuel pump. This Universal Stealth Pump Assembly used o-ring clamps to positively seal the provided 3/4" tube to both filter pikcup and the fuel pump inlet, allowing for perfect placement of the pickup and ensuring superior performance. Use this Aeromotive A1000 Stealth In Tank Pump Assembly to increase performance and drivability while extending the lifespan of the pump. Proper baffling and clearance will be required, but installation could not be simpler with this universal design.

Since releasing the Stealth Fuel Cells, the demand for the pump assembly alone has been exceptional. To meet this demand, Aeromotive developed these Universal Stealth Pump Assemblies. These revolutionary designs incorporate the same advantages all the Stealth Fuel Systems provide by placing the fuel pump and pre-filter inside the tank. However, this new design allows for multiple mounting options in almost any fuel tank or cell.

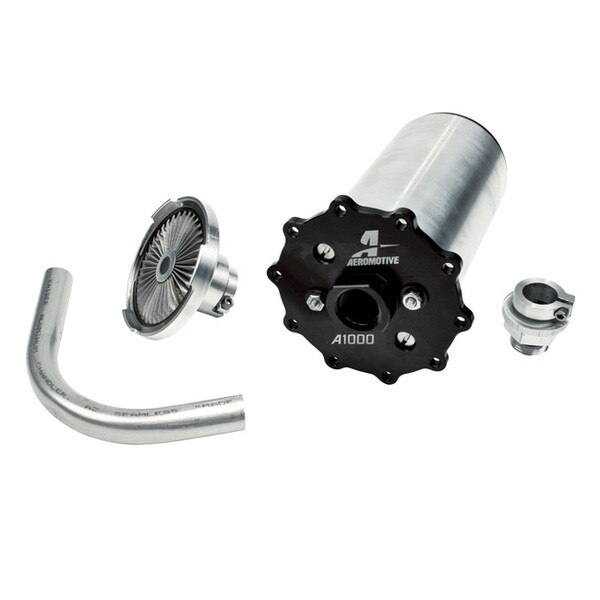

Aeromotive 18668 A1000 Universal Stealth Pump Module Contents:

• Aeromotive A1000 Fuel Pump
• 100 Micron Stainless Steel Fuel Filter
• 20" Long, 3/4" OD 90° Aluminum Tube for pickup
• Gaskets
• Mounting Ring
• Bolts and Washers

Aeromotive A1000 Fuel Pump Horsepower Ratings

Fuel Injected Engines:
• Naturally Aspirated - up to 1300 HP
• Forced Induction - up to 1000 HP

Carbureted Engines:
• Naturally Aspirated - up to 1500 HP
• Forced Induction - up to 1200 HP
