Aeromotive Phantom 200 Universal Fuel System

The Aeromotive 18689 Phantom 200 Stealth Fuel System is a cost effective means of replacing your factory fuel system to make it capable of supplying over 600 HP EFI Supercharged and 450 HP Carbureted Supercharged. Today's aftermarket world makes it easy to pick up the phone and order 1000 HP for your street car. This has created several challenges for fuel delivery, ranging from hot fuel handling to pump noise. Aeromotive's Phantom Fuel System gives you the option to put a high performance fuel pump inside virtually any fuel tank, including your factory tank. The Phantom 200 gives you the ability to install a in-tank fuel pump inside your factory tank capable of supporting big horsepower while staying whisper quiet. Works for both EFI and carbureted applictions.

No more welding sumps or using up trunk space with fuel cells. No more hot fuel handling issues like vapor-lock and no more fuel slosh. The Phantom system's internal baffle/basket controls fuel slosh and keeps the fuel pump submerged in fuel, even at low fuel levels and during aggressive driving. The best part about this whole system is its completely universal. This system will fit virtually any tank from 5.5" deep to 11" deep, plastic, steel, aluminum, corrugated or smooth. One system that gives you everything you need to fuel your ride. It gives you serious performance that you will never know is there!

Installation is Simple!

1. Cut a hole in your tank
2. Measure the depth
3. Cut hanger bracket and baffle/basket foam to length
4. Insert the baffle
5. Install the retainer ring and gasket
6. Bolt your pump and hanger down
7. That's it, you're done!

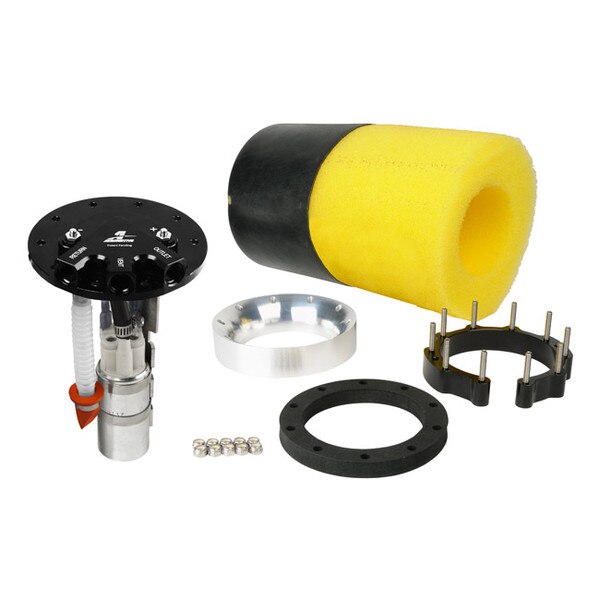

Aeromotive 18689 Phantom 200 Stealth Fuel System Features:

• Utilizes (1) Series 200 Stealth Fuel Pump
Fuel Injected Engines:
• Naturally Aspirated - up to 600 HP
• Forced Induction - up to 450 HP
Carbureted Engines:
• Naturally Aspirated - up to 750 HP
• Forced Induction - up to 600 HP
• Black anodized hanger assembly
• (3) ORB-06 Ports - Supply, Return, Vent
• Fuel resistant baffle/basket (Includes: Foam and Bladder)
• Universal high flow pre-pump filter
• Modular design can be cut to height to fit almost any fuel tank
• EFI or Carbureted
• Turbine pump mechanism increases durability
• Must be used with a return style system
• In-tank use only

Installation Guidelines:

• Utilize AN-06 (EFI) or AN-08 (Carb) size high pressure fuel lines, fittings and o-rings for all connections from the fuel tank to the engine, including the supply and return lines.
• Install a 10 Micron Post-Filter.
• Install a remote-mount rollover valve. It must be mounted in a vertical position and mounted as high or higher than your filler tube.
• Fuel pump wiring should be 10 gauge wire and triggered with a relay rated for a minimum of 20 amps.
• A return style or bypass regulator must be used, with the exception of applications running an ECU that supports a returnless systems where the ECU controls fuel pressure via PWM.
