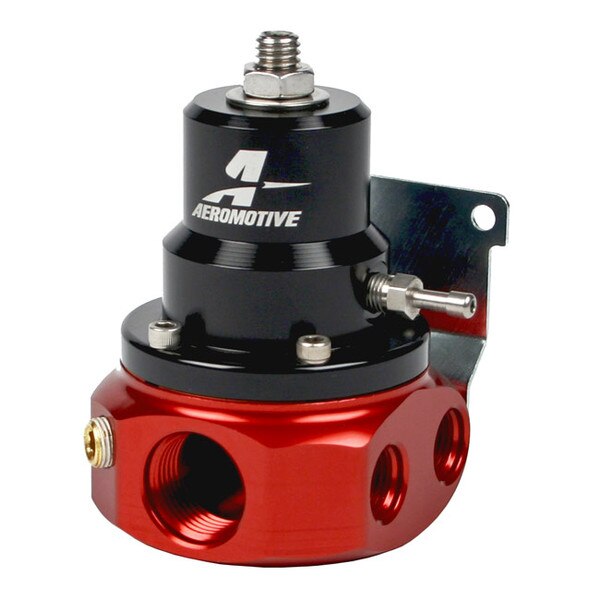

Aeromotive A1000 4-Port Carbureted Bypass Regulator

The Aeromotive A1000 4-Port Bypass Regulators were designed for use with the A1000 and Eliminator Fuel Pumps or similar style EFI pumps in a carbureted application. These regulators are perfect for naturally aspirated or 'blow-through' supercharged engines.

Note: Requires -8 AN return line with A1000 Fuel Pump. For Eliminator applications use P/N 15641 to adapt -10 AN return line to the ORB-08 return port on regulator.

Aeromotive 13224 A1000 4-Port Carbureted Bypass Regulator Features:
• Base fuel pressure adjustable from 3-15 psi
• (1) ORB-10 Inlet Port
• (1) ORB-08 Return Port
• P(4) ORB-06 Outlet Ports
• 1/8" NPT Gauge Port
• Fuel pressure rises on a 1:1 ratio when referencing boost
• Bypass design provides the ultimate, dynamic fuel pressure control
• Ideal for converting from fuel injection to carburetion using the stock, in-tank pump
• EFI conversions will require a larger-than-stock return line for proper low pressure control
