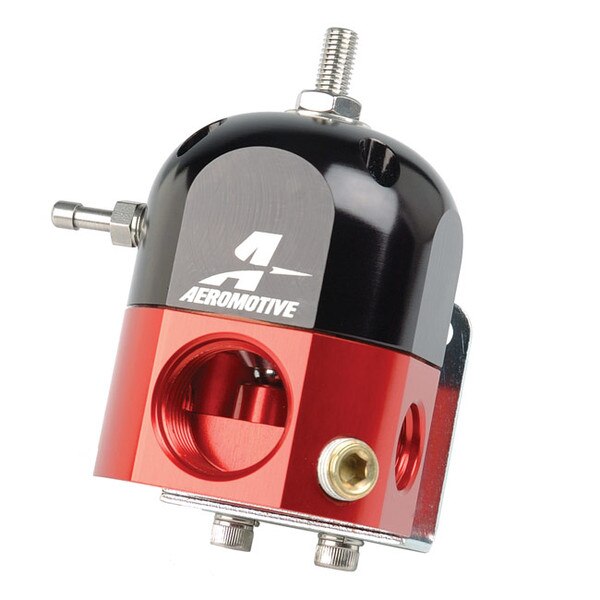

Aeromotive A1000 2-Port Carbureted Bypass Regulator

The Aeromotive 13204 A1000 Carbureted Bypass Regulator was designed for use with the A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or "blow-through" supercharged engines.

Note: Requires AN-08 return line from bottom of regulator back to top of the tank.

Aeromotive 13204 A1000 Fuel Pressure Regulator Features:
• Base fuel pressure adjustable from 3-15 psi
• (1) ORB-10 Inlet Port
• (1) ORB-08 Return Port
• (2) ORB-06 Outlet Port
• 1/8" NPT Gauge Port
• Fuel pressure rises on a 1:1 ratio when referencing boost
• Bypass design provides the ultimate, dynamic fuel delivery system
• Ideal for converting from fuel injection to carburetion using the stock, in-tank pump
• EFI conversions will require a larger-than-stock return line for proper low pressure control
